Home > Produkt-Liste > Benzin Wasserpumpe > 3inch Benzin Wasserpumpe (WP30) mit 6.5HP Honda Motor

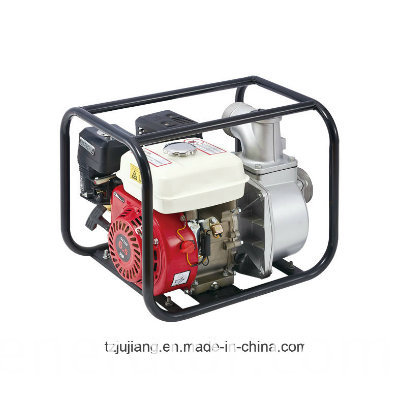

3inch Benzin Wasserpumpe (WP30) mit 6.5HP Honda Motor

Produktivität:
800 PCS/Day
Ort Von Zukunft:
Zhejiang, China
Versorgungsmaterial-Fähigkeit:
800 PCS/Day

Basisinformation

Modell:  WP30

Produktbeschreibung

Modell Nr .: WP30 Struktur: Kolbenpumpe Typ: Klinge Pumpe Theorie: Zentrifugal Pumpe Gewicht: 25kg Marke: JUJIANG Herkunft: Zhejiang, China Material: Gusseisen Kraft: Benzin Anwendung: Landwirtschaftliche Bewässerung Pumpe Pumpe: 3inch Pumpe Motor: Honda 6.5HP Motor Spezifikation: CE SONCAP HS Code: 8413709910
3inch Gasoline Water Pump (WP30) with 6.5HP Honda Engine

3 Zoll Benzin Wasserpumpe
Motor: JJ168 6.5HP luftgekühlter 1-Zylinder 4-stroker OHV Motor
Verschiebung: 196ccm
Tankinhalt: 3.6L
Ölkapazität: 0.6L
Saug: 7m
Kopfhub: 30m
Leistung: 60m3 / h
Größe: 513x383x415mm
Nettogewicht: 25kg
20GP Last: 330pcs





Mit CE, SONCAP, ISO9001: 2000 Zertifikat.
Wir sind zuversichtlich, Produkte mit guter Qualität zu vernünftigen Preisen zu liefern.
Wir freuen uns auf langjährige, fruchtbare und stabile Zusammenarbeit mit Ihnen.
Bitte kontaktieren Sie mich, wenn Sie Interesse haben, danke.
Model WP15 WP20 WP30 WP40
Outlet Size(mm) 40 50 80 100
Inlet Size(mm) 40 50 80 100
Speed (rpm) 3600 3600 3600 3600
Q. max(m3/h) 27 21 60 80
H. max (m) 20 30 30 25
Suction(m) 7 7 7 7
Maximum Power Output (HP) 2.5 5.5 6.5 11
Engine Model JJ154 JJ168F JJ168-1 JJ188
Bore x Stroke (mm) 52x38 68x45 68x54 88x64
Displacement (cc) 80.7 163 196 389
Compresslon Ratlo 7.7: 1 8.5: 1 8.5: 1 8.0: 1
Maximum Power Output 1.7kw/4000rpm 4.0kw/3600rpm 4.8kw/3600rpm 9.5kw/3600rpm
Recommended Power Using 1.65kw/3600rpm 3.4kw/3600rpm 4.0kw/3600rpm 8.0kw/3600rpm
Maximum Torque 4.2N. M/3200RPM 10N. M/2500RPM 11N. M/2500RPM 21N. M/2500RPM
Ignition System Non-contact transistorized(TCL)
Engine type Single cylinder, Air-cooled, 4-stroke, 25 inclined
Starting System Recoil and hand-operated Recoil and hand-operated/Eletric start
Air Cleaner semi-dry oil bath type semi-dry oil bath type
Fuel tank Capacity (L) 1.6 3.6 3.6 6.5
Fuel Consumption(L) ≤ 450g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h ≤ 395g/kw/h
oil Capacity (L) 0.37 0.6 0.6 1.1
Net Weight(kg) 18/39.6 27/59.4 30/66 47103.4
Dimensions LxWxH(mm) 450x340x355 480x370x415 520x390x460 615x445x52
